Instant Evaluations with Just One Touch

LCR-Reader LCR/ESR Meter

The title says it all. LCR-Reader is a handheld LCR- and ESR-meter that tests components with just a touch. The LCR-Reader requires no set-up for measurements; the device will automatically select the component type, test mode, frequency and signal. Not only will it show the main impedance component as L, C or R, but also any secondary values, such as R for L, C and C for R.

Save Time Identifying Components

No-set up required between measurements

Since many components are unlabeled or too small to have legible labels, losing track of components and their values is easy. LCR-Reader will automatically determine the type of component and best test parameters to use with virtually no-set up between measurements. Just grasp a component, mounted or lose, between the tweezers’ tips and the device will do the rest.

High Accuracy Measurements

0.5% Basic Accuracy

LCR-Reader tests all components using a 0.5% basic accuracy. This accuracy is higher than Smart Tweezers ST-1, ST-2 and ST-3.

It was previously believed that the accuracy of the device was 1%. This was proven wrong by Navair Technologies when Siborg sent 4 randomly selected devices for certification. Navair’s testing placed the accuracy closer to 0.1%.

Lightweight Design

Easy-to-use

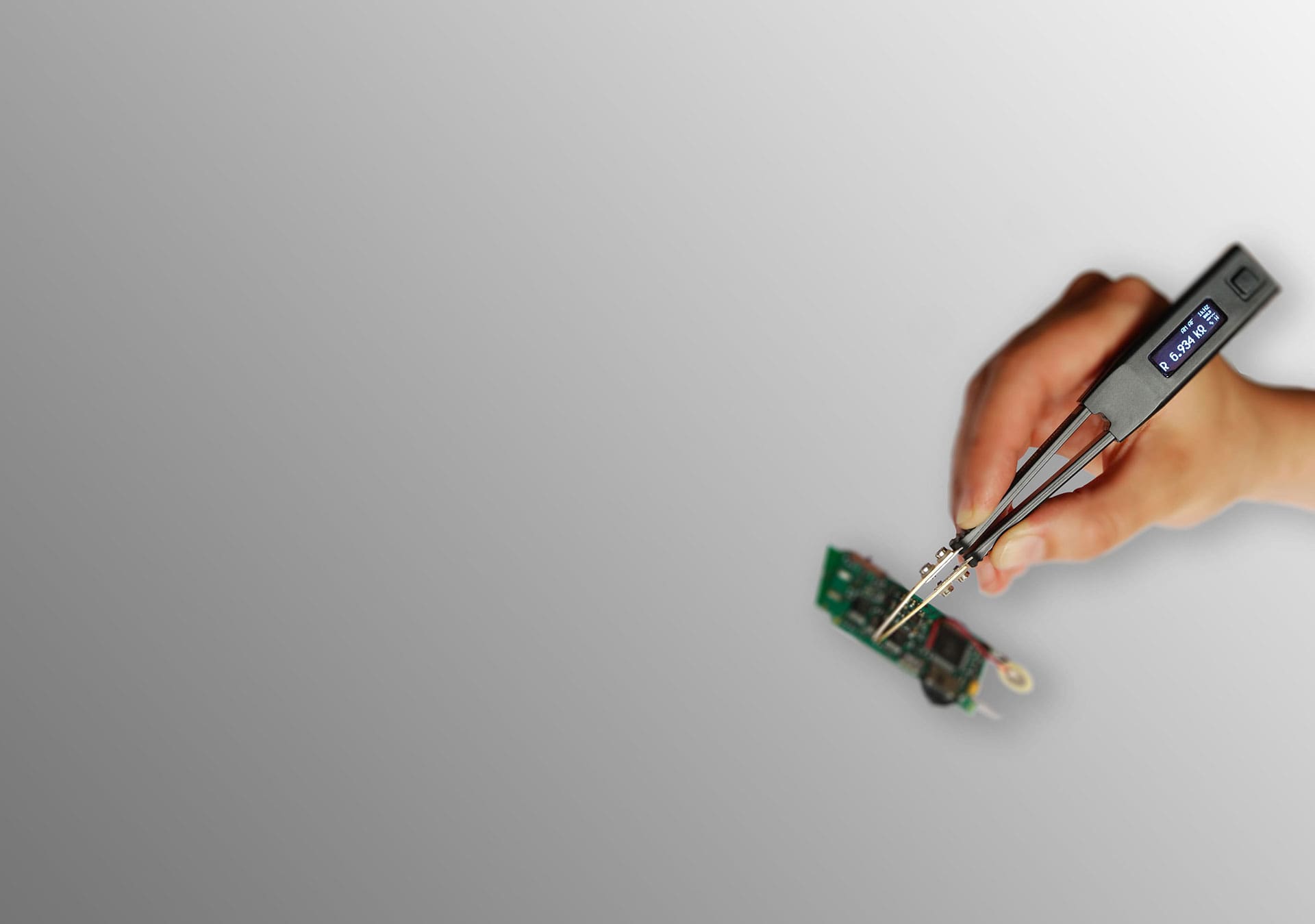

LCR-Reader’s design, based on Smart Tweezers, combines a lightweight multimeter with gold-plated tweezer probes. The 1 oz. device is ergonomically designed to limit hand-fatigue, and is small enough to be undetected in a bag or pocket. The Li-Ion battery has a 60 hour continuous-use and is micro-USB rechargeable. All measurement values are displayed on a built-in OLED display that is easy to read, even in dimly-lit environments.

Bright Display

Easy-to-read OLED display

LCR-Reader’s OLED display instantly displays all measurement values; including: main and secondary impedance values, test mode, component type, test frequency used and battery level indicator.

The high-contrast display makes it easy to read in even less-than-desirable lighting conditions.

Affordable

Lower-priced alternative to Smart Tweezers devices.

Siborg created LCR-Reader as a more affordable alternative for non-professionals looking for a Smart Tweezers-like device. The price point, roughly half of Smart Tweezers, is possible by removing features like the offset capacitance, variable signal, diode testing, etc. the lower price was easily achievable.

Traceable Calibration

NIST Traceable Calibration Certificates

Siborg chose 4 randomly selected LCR-Readers and sent them to Toronto’s Navair Technologies along with a new calibration fixture. Navair’s results showed LCR-Reader’s basic accuracy closer to 0.5% than the previously believed 1%. The calibration fixture was also certified allowing Siborg to create NIST traceable calibration certificates for all devices.

LCR-Reader Features

Automatic and manual L, C, R and ESR measurements
Basic accuracy of 0.5%
Automatic best range selection
One-button navigation
1 oz. (28 grams) weight
Li-Ion battery with micro-USB charging

LCR-Reader? LCR-Reader-MP? Colibri? Smart Tweezers?

Which Device is Best for You?

How do you choose which device you need? It depends on the type of work you’re doing, your price point and what kind of features you require. This helpful chart outlines the main features of each device to make it easier to decide which model works best for you.

Feature	LCR-Reader-MPA	LCR-Reader-MP	LCR-Reader	Colibri	ST-5S/BT2
Basic Accuracy	0.1%	0.1%	0.5%	0.5%	0.2%
Automatic L, C, R and ESR measurements	Yes	Yes	Yes	Yes	Yes
Manual L, C, R and ESR measurements	Yes	Yes	Yes	Yes	Yes
Designated ESR measurements	Yes	Yes	Yes	Yes	Yes
Variable Tolerances	1, 5, 10, 20 %	1, 5, 10, 20%	N/A	N/A	1 , 5, 10, 20%
Continuity and Diode testing	Yes	Yes	No	No	Yes
Parasitic Offset Subtraction	Yes	Yes	No	No	Yes
LED Testing	Yes	Yes	No	No	No
Battery & Charging Type	Li-Poly with Micro-USB	Li-Poly with Micro-USB	Li-Ion with Micro-USB	Li-Ion with Micro-USB	Li-Ion with Micro-USB
Screen Type	Back-lit LCD in Grey or Black	Back-lit LCD	OLED	OLED	OLED
Weight	1.35 oz.	1.5 oz.	1 oz.	1 oz.	1 oz.
NIST Traceable Calibration	Yes	Yes	Yes	Yes	Yes
Navigation	4-way joystick	Jog-wheel	One-button	One-button	4-way joystick button
Optional Bluetooth	Yes	No	No	No	Yes

Technical Specs
Frequency	100 Hz - 100 kHz	0.1, 0.12, 1, 10 kHz	0.1, 1, 10 kHz	0.1, 1, 10 kHz	0.1, 0.12, 1.0, 10 kHz
Test Signal Level	0.1, 0.5, 1.0 +/- 5% Vrms	0.65, 0.1 +/- 5% Vrms	0.45 +/- 5% Vrms	0.45 +/- 5% Vrms	0.5, 1.0 +/- 5% Vrms
Source Impedance	100 Ω	100 kΩ	62.5 Ω/1k Ω/16k Ω +/- 1%	62.5 Ω/1k Ω/16k Ω +/- 1%	100 Ω

Typical Accuracy
Resistance	0.1%	0.05%	0.5%	0.5%	0.2%
Capacitance	0.1%	0.2%	1%	1%	0.2%
Inductance	0.1%	0.2%	1%	1%	0.5%

Measurement Range
Resistance	0.1 Ohm to 20 MOhm	5 mΩ to 20 MΩ	0.1 Ω to 10 MΩ	0.1 Ω to 10 MΩ	0.05 Ω to 10 MΩ
Capacitance	0.1 pF to 1F	1 pF to 680 mF	2 pF to 5 mF	0.5 pF to 5 mF	0.5 pF to 10 uF
Inductance	10 nH to 100 H	10 nH to 100 H	10 uH to 1 H	10 uH to 1 H	0.5 uH to 1 H
